Libre Computer Le Potato Review (AML-S905X-CC)

I think I may have found one of my new favourite Single Board Computer manufacturers and they come in names that snack lovers will love. Goodbye healthy fruits like bananas, hello Le Potato and La Frite. Today’s special, Le Potato Review!

Libre Computer Le Potato AML-S905X-CC Review

Disclaimer: This post contains Amazon Affiliate links and I may receive a commission if you click on any of those and make a qualifying purchase. I also received this board and accessories at no cost for review purposes. However, Libre Computer has had no editorial input in this piece and everything below is my true and honest unfiltered waffle.

Le Potato Review

 AML-S905X-CC Specifications
CPUAmlogic S905X Quad-Core 1.51GHz Cortex-A53
RAM2GB DDR3 SDRAM
GPUMali-450 750MHz
StoragemicroSD Card Slot (UHS-I/SDXC)
eMMC Interface
Connectivity1x 10/100 Mbit Fast Ethernet
 I/O1x HDMI 2.0
4x USB-A 2.0
 40-pin Headers (PWM, I2C, SPI, GPIO)
 3.5mm TRRS AV Connection
 UART Headers
 Audio Headers (I2S, ADC, SPDIF)
 IR Receiver
PowerMicro USB (5v)
via GPIO Header
Dimensions (Length x Height)

Le Potato Desktop Experience

I chose to use the Libre Computers provided Ubuntu 22.10 image for my desktop testing and I was pleasantly surprised. You’re going to get a rather vanilla Ubuntu image rather than something that’s been thrown together with apt mirrors in faraway lands and localisations that need changing later.

I’d definitely recommend the eMMC module if you’re going to insist on using the Le Potato as a desktop machine as it will really help you squeeze everything out of the limited resources. Whilst testing with a microSD card, as expected, updates and general use were a little slow in places. It’s usable but with these kinds of specifications don’t expect it to be a perfect experience.

For further desktop, stay tuned for a future piece where I’ll dive a bit deeper into that (and further GPU tests) on this and other models!

Le Potato Heatsink

The first accessory I looked at was their bespoke heatsink. It covers both the Amlogic chip and RAM modules to keep temperatures under control and keep them under control it does.

A common issue I’ve had with the small, cheap heatsinks is the mounting pressure is just a thin layer of questionable tape. Will it transfer heat? Will it block it? It’s a lucky dip.. This official heatsink though offers a spring-loaded push pin mounting mechanism, applying a decent amount of pressure for the plentiful surface area. You can see how it performed further down.

Libre Computer Le Potato AML-S905X-CC Review

Le Potato Case

Another accessory you can get in the official store is the Le Potato Case which is a frosted plastic unit with an included cooling fan (30mm LoveRPi branded) with all of the necessary cutouts for Ethernet, USB, audio, HDMI, and power. There are included rubber feet though to help absorb a bit of vibration and stop it from sliding around.

It should be noted that the fan is installed to exhaust by default and can be connected to either the 5 or 3.3V headers depending on how fast you want it to run. All of my tests were done with it in the 5V header and whilst it wasn’t the loudest of fans, it was definitely noticeable. A quick test of it in the 3.3V header did drop the volume considerably. The fan’s performance can be seen in the temperatures section.

Libre Computer Le Potato AML-S905X-CC Review

Le Potato vs Raspberry Pi 4

I’ll eventually get around to doing a full comparison between this Le Potato and the Raspberry Pi 4 but for now, you’ll have to make do with a summary. If you want to compare the numbers in these graphs side-by-side though (and with the Banana Pi M5) my Banana Pi M5 vs Raspberry Pi 4 comparison will help you there.

All in all, the AML-S905X-CC is meant to go up against the Raspberry Pi 3, not the Pi 4 as it’s now 5 and a half years old and predates it (in addition, the Pi 4 has 4 Cortex-A72 cores compared to the Potato’s Cortex-A53) but considering the pricing at the moment and the scarce availability of Raspberry Pis, this may be of interest. After all, you may not need the power/features and just want something that’s well-supported.

On the whole, given the above, we see that the Libre Computer Le Potato’s Amlogic S905X clocks in at around 50-60% of the compute performance compared to the Raspberry Pi 4’s BCM2711 SoC.

Notable outliers are the Crypto++ test where the Pi 4 is either matched or beaten by 10%, or on the WireGuard benchmark where the Le Potato was almost 7 minutes quicker per run (so 17.71% slower on the Raspberry Pi 4)

Software Support

The Libre Computer range really stands out amongst the others that I’ve tested recently as they actually class themselves as a software company first and actively support the Linux community with time and finances.

Operating Systems

In addition to having the latest Ubuntu 22.10 on mainline kernel 6.x, Libre Computer offers/support builds for Raspberry Pi OS, Lakka, CoreELEC, and LibreELEC. There are also builds from Armbian if you’re used to their builds and Debian directly from Libre will be coming soon™.

Additional Software

Not content with providing a great experience when it comes to operating system support, they also hit you with a couple of other tools to help make your Libre Computer experience/transition that little bit better.

Raspbian Portability Script

I won’t go over this in too much detail here as I wrote an extensive piece on how to use the Raspbian Portability Script but at its core, it’s a script that will help you convert a Raspberry Pi OS image into something that works with a specific Libre Computer board. You’ll even get to use the same image again back in a Raspberry Pi if needed!

Libre Computer Wiring Tool

If you’re coming from a Raspberry Pi device and you’d like to use the GPIO pins in a similar fashion, you can take a look at the Libre Computer Wiring Tool which will help you “translate” the functions. It should only be used on Libre Computer’s first-party images and the installation/steps can be found on their forum.

Compute Benchmarks

UnixBench

Libre Computer Le Potato Review - 1 CPU Benchmark Results
Libre Computer Le Potato Review - UnixBench 4 CPU Benchmark Results

GeekBench 5.4 (AArch64)

Libre Computer Le Potato Review - Geekbench 5.4 1 CPU Benchmark Results
Libre Computer Le Potato Review - Geekbench 5.4 4 CPU Benchmark Results

GZIP Compression

Libre Computer Le Potato Review - GZIP Compression Benchmark Results

PyBench

Libre Computer Le Potato Review - PyBench Benchmark Results

PHPBench

Libre Computer Le Potato Review - PHPBench Benchmark Results

WavPack Audio Encoding

Libre Computer Le Potato Review - WavPack Audio Encoding Benchmark Results

Crypto++

Libre Computer Le Potato Review - Crypto++ Benchmark Results

CacheBench

Libre Computer Le Potato Review - CacheBench Benchmark Results

tinymembench

Libre Computer Le Potato Review - tinymembench Benchmark Results
Libre Computer Le Potato Review - tinymembench Benchmark Results

OpenSSL Benchmark

Libre Computer Le Potato Review - OpenSSL Benchmark Results

WireGuard Benchmark

This is the first time I’ve included a WireGuard test in a review and I figured this could be a useful addition to the lineup. This was run on Ubuntu 20.10 with kernel 6.0.8-00789-g99a6460d70b3 with the WireGuard 1.0.1 test on Phoronix Test Suite.

The test creates 3 namespaces; ns0, ns1, and ns2. ns0 is the loopback and ns1/ns2 have WireGuard devices configured on them. They then send traffic through the loopback device on ns0, stressing the CPU and scheduler with both encryption and decryption at the same time

The final result is shown as the time taken to complete the benchmark in seconds (where lower is better). The AML-S905X-CC here took an average of 2000 seconds to complete. For comparison, a Raspberry Pi 4 on the latest Raspberry Pi OS (5.15.74-v8+) took 2413 seconds. This looks good for the Libre Computer board, though the 100Mbit port will hold it back for VPN purposes in a lot of cases these days.

Storage (microSD/SSD) Performance

The “Le Potato” offers both a microSD slot and the option to use an addon eMMC module. When it comes to the microSD card performance it’s certainly not going to light the world on fire, but it’s a solid performer, and picking the right SD card will give you 15-20MB/s in sequential reads/writes along with “OK” random reads/writes on the better cards of around 2.5-4.5MB/s.

If you’re wanting to do more intensive disk operations without the added bulk of a USB-attached SSD, you can pick up their eMMC modules. These come in many sizes, though the 16GB option was tested here, with 140MB/s+ sequential reads, 170MB/s+ sequential writes, and around 15MB/s on both random reads and writes.

Update: A few days ago Libre Computer released their latest images for the AML-S905X-CC which included a performance boost for the microSD card reader. I have since run new benchmarks and have included those in the main review. The older data is in the collapsible area below it so you can compare the 2. It’s really a decent boost on most cards in the sequential area, though the better cards do see a better overall improvement. IOPING didn’t offer results that differed enough to warrant changing them, just in case you wonder why they’re the same.


SD Card Model
Sequential ReadSequential WriteRandom ReadRandom WriteIOPing
SanDisk Ultra (8GB)30.22 MB/s12.1 MB/s5.72 MB/s0.69 MB/s2.2 ms
SanDisk Ultra (16GB)38.39 MB/s12.4 MB/s9.14 MB/s2.68 MB/s3.66 ms
SanDisk Ultra (32GB)38.83 MB/s14.9 MB/s9.23 MB/s2.48 MB/s3.52 ms
SanDisk Extreme (64GB)39.37 MB/s27.8 MB/s8.32 MB/s4 MB/s1.95 ms
SanDisk Extreme PRO (128GB)38.29 MB/s27.8 MB/s7.96 MB/s3.99 MB/s2.12 ms
Kingston Canvas Select Plus (32GB)38.29 MB/s17.8 MB/s6.67 MB/s2.22 MB/s2.04 ms
KIOXIA EXCERIA (32GB)39.62 MB/s15.1 MB/s8.81 MB/s4.2 MB/s1.94 ms
Samsung EVO Plus (32GB)33.61 MB/s16.9 MB/s10.27 MB/s2.37 MB/s1.98 ms
Amazon Basics (64GB)39.21 MB/s32.8 MB/s10.12 MB/s4.5 MB/s2.19 ms
Verbatim Premium (16GB)37.05 MB/s10.5 MB/s8.78 MB/s2.66 MB/s2.08 ms
SanDisk MAX ENDURANCE (32GB)39.25 MB/s24.3 MB/s7.95 MB/s4.21 MB/s1.88 ms
Integral ultima PRO (64GB)32.88 MB/s30.65 MB/s9.12 MB/s4.6 MB/s2.51 ms
Patriot EP Series (64GB)Refusedtoboot🙁
Kodak (64GB)33.34 MB/s22.5 MB/s3.88 MB/s0.77 MB/s2.06 ms
Intenso (64GB)38.65 MB/s31.1 MB/s11.39 MB/s4.64 MB/s2.15 ms
Transcend (32GB)39.77 MB/s17.55 MB/s12.61 MB/s4.15 MB/s1.88 ms
Samsung EVO Select (32GB)38.28 MB/s15.4 MB/s10.46 MB/s2.09 MB/s2.15 ms
Samsung PRO Plus (128GB)20.5 MB/s15.35 MB/s6.69 MB/s1.34 MB/s2.15 ms
SanDisk HIGH ENDURANCE (64GB)39.36 MB/s23.5 MB/s6.6 MB/s3.1 MB/s1.95 ms
Samsung PRO Endurance (32GB)39.04 MB/s20.1 MB/s11.55 MB/s2.29 MB/s1.9 ms
Silicon Power 3D NAND (32GB)39.24 MB/s17.9 MB/s11.45 MB/s3.36 MB/s2.03 ms
Addon eMMC (32GB)143.2 MB/s172.2 MB/s15.76 MB/s13.99 MB/s2.73 ms

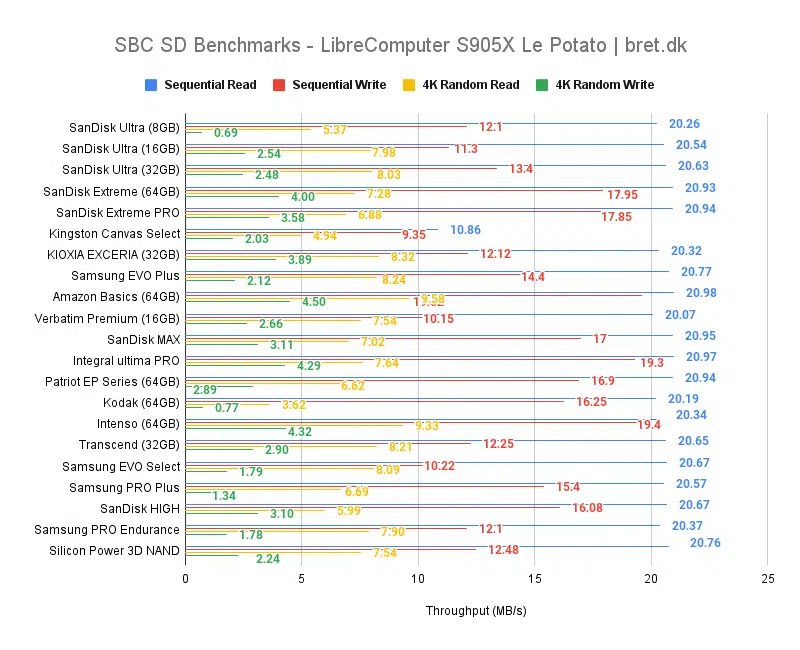

Libre Computer Le Potato Review - microSD Card Benchmark Results

SD Card Model
Sequential ReadSequential WriteRandom ReadRandom WriteIOPing
SanDisk Ultra (8GB)20.26 MB/s12.1 MB/s5.37 MB/s0.69 MB/s2.2 ms
SanDisk Ultra (16GB)20.54 MB/s11.3 MB/s7.98 MB/s2.54 MB/s3.66 ms
SanDisk Ultra (32GB)20.63 MB/s13.4 MB/s8.03 MB/s2.48 MB/s3.52 ms
SanDisk Extreme (64GB)20.93 MB/s17.95 MB/s7.28 MB/s4 MB/s1.95 ms
SanDisk Extreme PRO (128GB)20.94 MB/s17.85 MB/s6.88 MB/s3.58 MB/s2.12 ms
Kingston Canvas Select Plus (32GB)10.86 MB/s9.35 MB/s4.94 MB/s2.03 MB/s2.04 ms
KIOXIA EXCERIA (32GB)20.32 MB/s12.12 MB/s8.32 MB/s3.89 MB/s1.94 ms
Samsung EVO Plus (32GB)20.77 MB/s14.4 MB/s8.24 MB/s2.12 MB/s1.98 ms
Amazon Basics (64GB)20.98 MB/s19.62 MB/s9.58 MB/s4.5 MB/s2.19 ms
Verbatim Premium (16GB)20.07 MB/s10.15 MB/s7.54 MB/s2.66 MB/s2.08 ms
SanDisk MAX ENDURANCE (32GB)20.95 MB/s17 MB/s7.02 MB/s3.11 MB/s1.88 ms
Integral ultima PRO (64GB)20.97 MB/s19.3 MB/s7.64 MB/s4.29 MB/s2.51 ms
Patriot EP Series (64GB)20.94 MB/s16.9 MB/s6.62 MB/s2.89 MB/s1.82 ms
Kodak (64GB)20.19 MB/s16.25 MB/s3.62 MB/s0.77 MB/s2.06 ms
Intenso (64GB)20.34 MB/s19.4 MB/s9.33 MB/s4.32 MB/s2.15 ms
Transcend (32GB)20.65 MB/s12.25 MB/s8.21 MB/s2.9 MB/s1.88 ms
Samsung EVO Select (32GB)20.67 MB/s10.22 MB/s8.09 MB/s1.79 MB/s2.15 ms
Samsung PRO Plus (128GB)20.57 MB/s15.4 MB/s6.69 MB/s1.34 MB/s2.15 ms
SanDisk HIGH ENDURANCE (64GB)20.67 MB/s16.08 MB/s5.99 MB/s3.1 MB/s1.95 ms
Samsung PRO Endurance (32GB)20.37 MB/s12.1 MB/s7.9 MB/s1.78 MB/s1.9 ms
Silicon Power 3D NAND (32GB)20.76 MB/s12.48 MB/s7.54 MB/s2.24 MB/s2.03 ms
Addon eMMC (16GB)143.2 MB/s172.2 MB/s15.76 MB/s13.99 MB/s2.73 ms

Network Benchmarks

Libre Computer Le Potato Review - Ethernet Network Benchmark Results

Temperatures

We have a few numbers to look over here thanks to our testing in 4 separate scenarios. All temperatures are at an ambient room temperature of 25 degrees Celsius and we have the board on its own, with the official heatsink, in the case with its fan and then finally, the heatsink and fan inside the case.

Libre Computer Le Potato AML-S905X-CC Review

As expected, the temperatures drop off with each addition to the cooling arsenal though the SoC did not thermal throttle once in any of these tests so unless your ambient temperature is much higher than 25c then you may be fine if you’re not pushing it at 100% 24/7. For $15 (on the LoveRPi site) I would definitely recommend picking up the heatsink and case/fan combo though, it’ll keep your new little friend very happy.

Libre Computer Le Potato Review - Temperature Results

How much power does the Le Potato consume?

The Le Potato consumes nearly half of the power of the Raspberry Pi 4 in the same setup both whilst idle and under full load! Though saying that, there’s a little more to it as you have no WiFi/Bluetooth chip on the AML-S905X-CC board amongst other features but if you don’t need WiFi and you just want something with decent performance that will sip minuscule amounts of power from the wall then this Libre Computer board could be worth considering.

Libre Computer Le Potato Review - Le Potato Power Consumption

Where can I buy Le Potato?

Libre Computer does sell on Amazon (with worldwide shipping!) as well as their own website so you have a couple of options available. Prices below are correct at the time of writing/updating (20th November 2022)

AmazonLoveRPi
Le Potato SBC$34.95 USD$30 USD
Le Potato Heatsink$6.99 USD$5 USD
Le Potato Fan & Case$14.99 USD$10 USD
Libre Computer eMMCN/A$15-70 USD
Libre Computer Le Potato AML-S905X-CC Review

Is It Worth It?

If you’ve made it this far, it’s fair to say that you’ve found out that I’m a big fan of what Libre Computer is doing with its software and hardware offerings. Does the AML-S905X-CC offer the latest SoCs with all of the mod cons? No. Does it provide a solid alternative to a Raspberry Pi that’s available to buy right now at a great price? Yes!

They’re not just trying to pump out thousands of boards and leave the community to clean up the mess so if you’re in the market for a new Single Board Computer and the data above ticks your boxes, I’d highly recommend supporting them. They even have some beefier Rockchip models but I’ll save those for another day.

Do you have a Libre Computer “Le Potato” board? What are you using it for? Follow me on Twitter or Mastodon and let me know!
