Site-to-Site VPN Guide: UniFi Router to UpCloud

This is a bit out of left field for my usual content, but I needed to set this up recently and thought that maybe at least one other person would be interested in setting up a Site-to-Site VPN between their Ubiquiti UniFi router and UpCloud VMs.

After spending far too long digging through forum posts and piecing together information from different sources, I’ve got a working setup that I’m pretty happy with, so I thought I’d share it. It may not be exactly the same as your needs, but you can tweak bits as needed.

Full disclaimer, I work for UpCloud, but you can adapt this guide to work with any provider that offers private internal networking like this, you just need to change the IP ranges that you want to work with, the same goes for anyone wanting to do this with UpCloud’s SDN options rather than Utility network, just change the IP range(s) to those of your SDN networks!

Prerequisites

UniFi Router/Gateway with Site-to-Site VPN capabilities
UpCloud VM with Debian/Ubuntu (there’s a 7-day trial available if you want to check it out)
Public IP addresses for both endpoints (your home internet + the UpCloud VM)

I’m using Ubiquiti’s UniFi Cloud Gateway Ultra for this, as that’s what I have both at home and in the office, but this should work with other UniFi routers too.

The cloud server from UpCloud can be in any zone. I’d recommend choosing whichever is closest to your own location, and you can go with any of the plans. In my testing, I used a €3 DEV plan and everything worked just fine. You just need to ensure that it has a public IP address for you to go through, and then you can have other VMs with UpCloud that don’t have public IPs and access them via the Utility/internal network from your home network!

UniFi Router Configuration

Setting things up on the UniFi side is super straightforward:

Log in to your UniFi Controller
Navigate to Settings > VPN > Site-to-Site VPN
Create a New Site-to-Site VPN
Select IPsec as the VPN type
Give it a memorable name!
Select Route Based if it’s not already selected

Basic Settings

Server Address: Your UniFi router’s public IP (should auto-populate)
Remote IP: Your UpCloud VM’s public IP
Remote Networks: 10.0.0.0/8 (for UpCloud networks)
Pre-Shared Key: Use the one pre-generated, or generate something strong and note it down

NOTE: If you use 10.0.0.0/8 or anything within it on your home network, you’ll need to amend the Remote Networks list, otherwise, you’ll end up with a conflict and it won’t work!

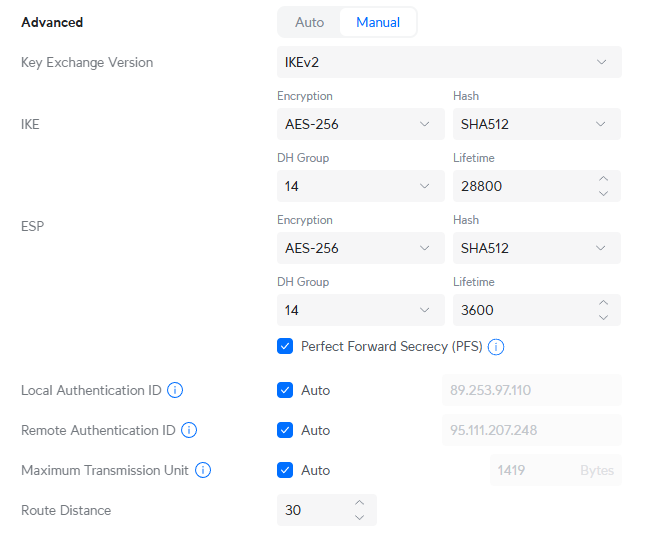

Advanced Settings

We’re going to deviate a little from the Auto defaults with the following:

A balance of security and compatibility/performance

UpCloud VM Configuration

There are a few things you’ll need to change in the configs below. To make it a bit clearer:

$YOUR-IP – Your home connection’s public IP address
$LOCAL-IP-RANGE – Your home network’s IP range
$UPCLOUD-IP – Your UpCloud VM’s public IP address
$ROUTED-IP-RANGE – The IP range(s) to route over the VPN

I’m also assuming your utility IP address on the UpCloud VM is on eth1, which is the default. If you’ve changed your network setup, you’ll need to check which interface your utility IP is using.

Install StrongSwan

First, install StrongSwan to handle the IPsec connection:

sudo apt update
sudo apt install strongswan

Configure IPsec

Create your IPsec configuration:

sudo nano /etc/ipsec.conf

Add this configuration (changing the variables as needed):

config setup
    charondebug="ike 2, knl 2, cfg 2, net 2, esp 2, dmn 2, mgr 2"

conn unifi-to-upcloud
    type=tunnel
    auto=start
    keyexchange=ikev2
    authby=secret

    # UpCloud VM info
    left=$UPCLOUD-IP
    leftsubnet=10.0.0.0/8
    leftid=$UPCLOUD-IP

    # UniFi router info
    right=$YOUR-IP
    rightsubnet=$LOCAL-IP-RANGE
    rightid=$YOUR-IP

    # Encryption settings
    ike=aes256-sha512-modp2048
    esp=aes256-sha512-modp2048

    # Perfect Forward Secrecy
    pfs=yes

    # Additional settings
    ikelifetime=28800s
    lifetime=3600s
    dpddelay=30s
    dpdtimeout=120s
    dpdaction=restart

Set Up the Pre-Shared Key

Now add your pre-shared key:

sudo nano /etc/ipsec.secrets

Add this line (using the same key from your UniFi setup):

$UPCLOUD-IP $YOUR-IP : PSK "your_preshared_key_here"

Enable IP Forwarding

Time to let your VM route traffic:

sudo nano /etc/sysctl.conf

Uncomment or add these lines:

net.ipv4.ip_forward = 1
net.ipv4.conf.all.accept_redirects = 0
net.ipv4.conf.all.send_redirects = 0

Apply the changes:

sudo sysctl -p

Set Up the Firewall

We need to allow VPN traffic through:

sudo apt install iptables # if not already installed

sudo iptables -A INPUT -p udp --dport 500 -j ACCEPT
sudo iptables -A INPUT -p udp --dport 4500 -j ACCEPT
sudo iptables -A INPUT -p esp -j ACCEPT

Make these rules persist across reboots:

sudo apt install iptables-persistent
sudo netfilter-persistent save

Configure NAT

Set up NAT for traffic from your UniFi network:

sudo iptables -t nat -A POSTROUTING -s $LOCAL-IP-RANGE -o eth1 -j MASQUERADE
sudo iptables -A FORWARD -i eth0 -o eth1 -j ACCEPT
sudo iptables -A FORWARD -i eth1 -o eth0 -j ACCEPT

Start StrongSwan

Finally, start the VPN service and make it run at boot:

sudo systemctl restart ipsec
sudo systemctl enable ipsec

Testing the Connection

Check IPsec Status

Make sure your VPN is working:

sudo ipsec status

You should see something like:

Security Associations (1 up, 0 connecting):
unifi-to-upcloud[1]: ESTABLISHED
unifi-to-upcloud{1}: INSTALLED, TUNNEL

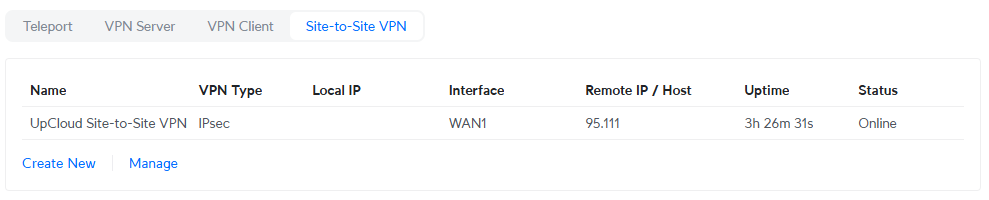

We should also see the following in the UniFi Console

Verify Connectivity

Now let’s make sure traffic is actually flowing:

From UpCloud VM to UniFi LAN:

ping 192.168.1.x  # change to an IP on your home network

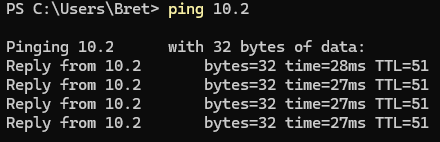

From UniFi LAN to UpCloud networks:

ping 10.x.x.x  # change to an IP on your UpCloud network

Troubleshooting

If things aren’t working as expected, here are a few things to check:

Look at the IPsec Logs

sudo tail -f /var/log/syslog | grep charon

Check for Traffic Flow

This will show you if packets are moving through the VPN:

sudo tcpdump -i eth0 esp

If you don’t see anything while trying to ping across the VPN, something’s not right.

Restart the VPN Service

Sometimes turning it off and on again really does work:

sudo systemctl restart ipsec

That’s it! You should now have a functioning Site-to-Site VPN between your UniFi network and UpCloud VMs. This setup lets you route traffic between your home network and UpCloud’s utility networks without having to list out each specific subnet.
